| 15W

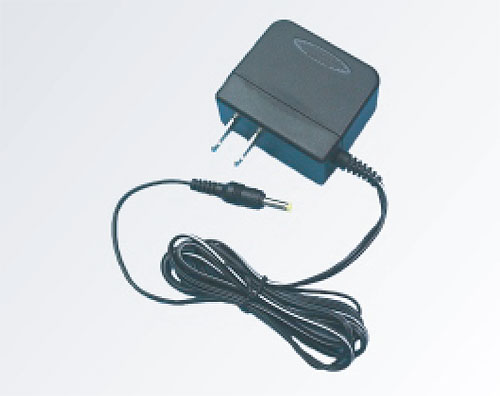

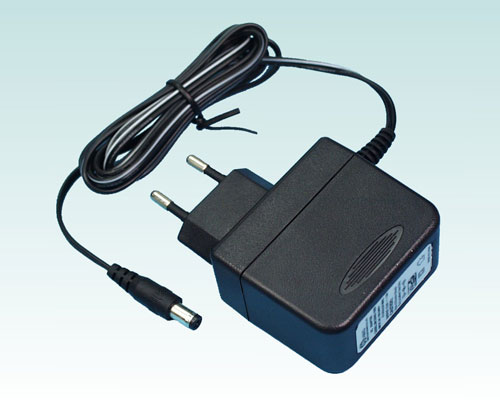

AC-DC Switching Power Adapter |
Size : 58*30*34.5mm |
|
Size : 60*30*50mm
|
|
|
 Feature :
- Universal input 100-240VAC 50/60hz
1A
- Constant Current Mode
- Constant Voltage Mode
- Mini Size and Easy Portable
- Light & Convenient Wall
Plug
|
|
General
Specification :
- Operating Temperature : 0~40 ℃
- Operating Relative Humidity :
5-95%RH
- Storage Temperature : -20~85 ℃
- Effciency : 70% Min
|
|
Application :
- Portable DVD, Mp3, Mp4, Modem
|
|
Model No.
|
Max. Load
|
Max. Output
|
UL
|
CUL
|
FCC
|
CE
|
TUV/GS
|
|
|
+5V
|
+9V
|
+12V
|
|
|
|
|
|
|
|
IM050WU-200B
|
2.0A
|
-
|
-
|
10W
|
V
|
V
|
V
|
V
|
V
|
|
IM090WU-100B
|
-
|
1.0A
|
-
|
9W
|
V
|
V
|
|
|
V
|
|
IM090WU-150B
|
-
|
1.5A
|
-
|
13.5W
|
V
|
V
|
V
|
V
|
V
|
|
IM120WU-100B
|
-
|
-
|
1A
|
12W
|
V
|
V
|
V
|
V
|
V
|
|
IM120WU-125B
|
-
|
-
|
1.25A
|
15W
|
V
|
V
|
V
|
V
|
V
|
|
