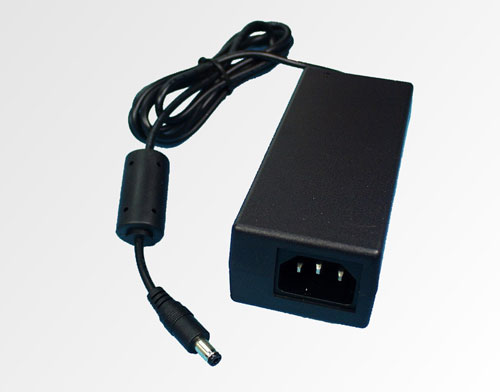

| 60W
Series AC-DC Power Supply |
Size : 112*62*33mm |
|
| |
- Green-mode designing, meet IEA
standard<0.75W (standby state)
- Low ripple noise
- Universal input 90-264VAC
- Active PFC available
- Short circuit protection, auto
recovery start up
- AC inlet IEC 320-C14 with LED
indicator
- One year warranty
|
|
Model No.
|
Max. Load
|
Max. Output
|
UL
|
CUL
|
FCC
|
CE
|
CB
|
TUV/GS
|
|
|
+5V
|
+7.5V
|
+9V
|
+12V
|
+15V
|
+19V
|
+24V
|
+48V
|
|
|
|
|
|
|
|
|
IM050EU-800D
|
8A
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
40W
|
|
|
V
|
|
|
V
|
|
IM075EU-600D
|
-
|
6A
|
-
|
-
|
-
|
-
|
-
|
-
|
45W
|
|
|
V
|
|
|
V
|
|
IM090EU-560D
|
-
|
-
|
5.6A
|
-
|
-
|
-
|
-
|
-
|
50W
|
|
|
V
|
|
|
V
|
|
IM120EU-500D
|
-
|
-
|
-
|
5A
|
-
|
-
|
-
|
-
|
60W
|
|
|
V
|
|
|
V
|
|
IM150EU-400D
|
-
|
-
|
-
|
-
|
4A
|
-
|
-
|
-
|
60W
|
|
|
V
|
|
|
V
|
|
IM190EU-320D
|
-
|
-
|
-
|
-
|
-
|
3.2A
|
-
|
-
|
60W
|
|
|
V
|
|
|
V
|
|
IM240EU-250D
|
-
|
-
|
-
|
-
|
-
|
-
|
2.5A
|
-
|
60W
|
|
|
V
|
|
|
V
|
|
IM480EU-130D
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
1.3A
|
60W
|
|
|
V
|
|
|
V
|
|
|
|
| |
|
