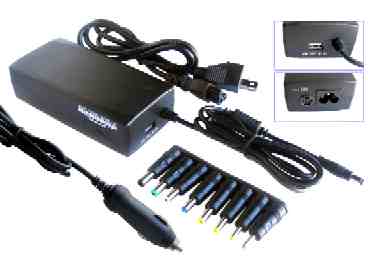

Universal AC/DC Notebook Charger

Size : 137(L) * 66(W) * 37.5 (H) mm

  • Input 1: Car 12-16VDC
  • Input 2: 100-240VAC/47-63Hz
  • Output 1: DC +12V/15V/16V/18V/19V/ 0-5.0A, 20V/24V/ 0-4.5A

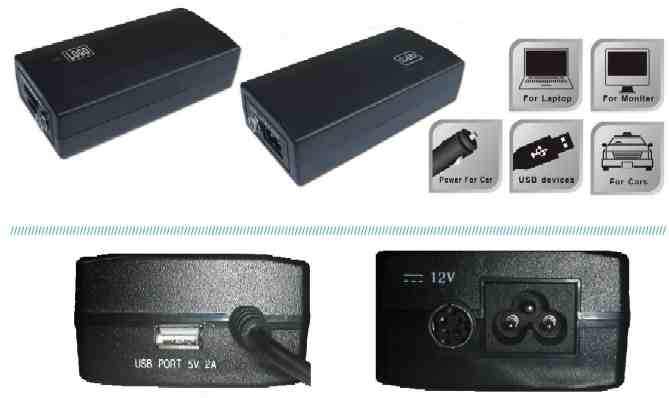

  • Output 2: USB Port 5V/ 2A
  • Efficiency: 86% Typical
  • Safety: CE
  • EMI: CLSPR 22/ FCC/ VCCI Class B; Conducted & radiated meeted
  • High frequency design, less power consumption
  • Over Voltage Protection, Short Circuited Protection, Over Power Protection
  • Can be used at Tel Communication, PC, Industrial Controller & OA System

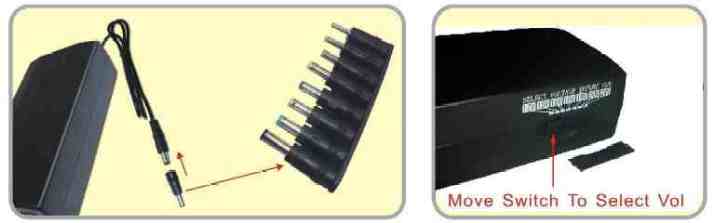

A.) 6.5*4.3 +Pin

B.) 6.5*3.0 +Pin C.) 5.5*2.5 *12C D.) 5.5*2.1 *12C E.)  5.5*2.1 F.) 4.8*1.7 G.) 4.0*1.7 H.) 3.5*1.35
